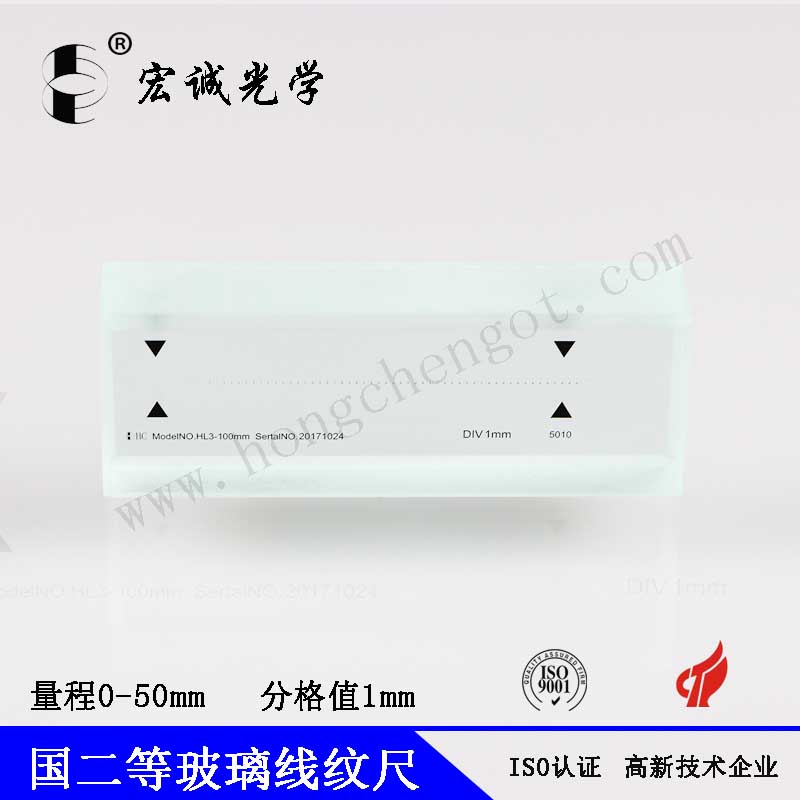

Name:0-50mm National level standard glass scale The normal standard glass scale

Name: Standard glass scale      Model: HBL01-50-GB


Place of Origin:Dongguan, China     Brand Name: Hongcheng


Quality:100% Tested       Shipping Term:customized


Supply Ability:5000 Piece/Pieces per Week


 Application

The working standard glass scale is used as an optical component for measuring and calibrating in length measuring tools such as length measuring instrument, length measuring machine, universal tool microscope and universal measuring machine. In the coordinate boring machine, coordinate grinder and other precision machine tools as a positioning element standard glass scale for measuring or positioning, and reading microscope, optical reading head or photoelectric microscope, etc. The ruler film used for tool microscope faces down and is engraved on the back of the ruler.

Basis of production and testing regulations: JJG73-2005 (verification regulations for standard glass scale)

——The specifications of normal standard glass scale are as follows:



Model

Length(mm)

Width(mm)

Thickness(mm)

Division Value

Accuracy(um)

HBL01—100

130

30

5

0.1mm,0.5mm,1mm

1

HBL01—200

230

30

5

0.1mm,0.5mm,1mm

1

HBL01—300

330

30

5

0.1mm,0.5mm,1mm

1

HBL01—400

430

30

5

0.1mm,0.5mm,1mm

1

HBL01—500

530

30

5

0.1mm,0.5mm,1mm

1

HBL01—600

630

30

5

1mm

3

HBL01—700

730

30

5

1mm

3

HBL01—800

830

30

5

1mm

5—8

HBL01—1000

1030

30

5

1mm

8—10

The above specification are commonly used specifications, other models can be customized.

·         ——The specification of National level standard glass scale is as follows:



Model

Length(mm)

Width(mm)

Thickness(mm)

Division Value

Accuracy(um)

HBL01—1-GB

46

30

5

0.01mm

1

HBL01—10-CB

46

30

5

0.01mm

1

HBL01—100-CB

130

30

10

1mm

1

HBL01—200-CB

230

30

10

1mm

1.5

HBL01—300-CB

330

30

15

1mm

2.5

HBL01—400-CB

430

30

15

1mm

3

HBL01—500-CB

530

30—35

15—25

1mm

3.5







If you have any question, feel free to contact me ,we are glad to help
